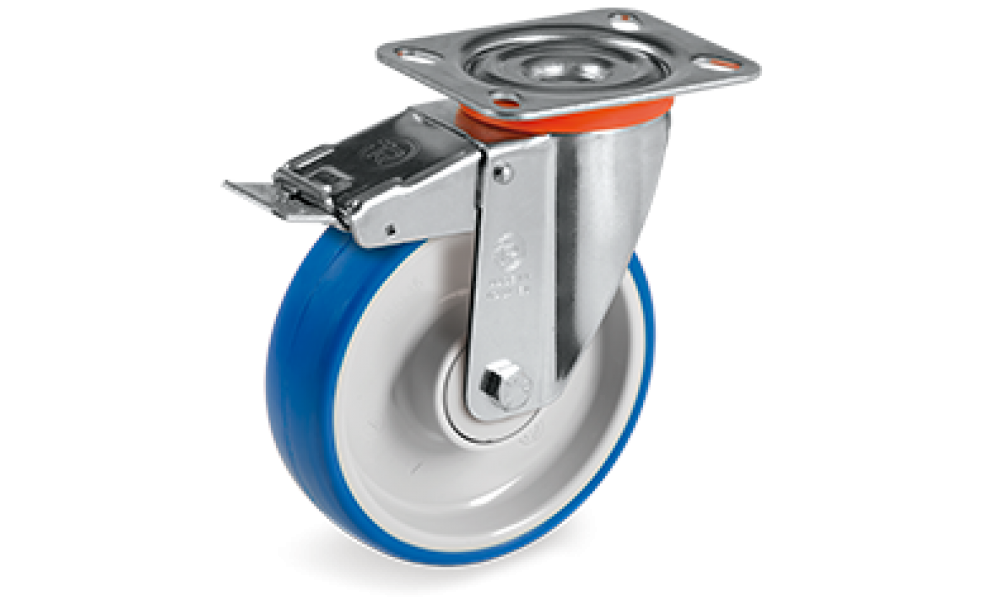

125mm Impact Polyurethane Wheels, Polyamide 6 Centre, Swivel Top Plate Bracket type NL 614903

Be the first to review this product

Quick Overview

 Features



  • 125mm Impact polyurethane wheels,

  • polyamide 6  Centre,

  • Swivel Top Plate Bracket type NL 614903


Description:Injected polyurethane wheels, hardness 85 Shore A, polyamide 6 centre,


hub with single ball bearing, swivel top plate bracket type NL. Diam. 125x35 mm.


Dynamic Load Capacity:180 daN

₦21,496.99

Availability: Ship by Manufacturer (delivery time 15 - 45 days)

X

Estimate Shipping and Tax

  • Details

    Wheel description-

    • Injection polyurethane tread; hardness 80 Shore A. Thermoplastic centre.
    • Hub with ball bearing
    • The wheel is molded around a single, double sealed (2Z) central ball bearing. Also available with stainless steel ball bearing.
    • The bearing caps on both sides of the hub protect the bearing from dust, residual material and aggressive agents.
    • The caps are made of glass fiber polyamide.
    • Axle
    • Axle composed of bolt according to UNI EN 24017 and nut according to UNI EN 24032.
    • Swivel top plate bracket type NL with front lock
    • Swivel top plate bracket type NL. The plate, the ball rice ring and the fork are of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted.
    • The front brake is necessary to lock wheel and top plate rotation.
    • Wheel diametre Wheel width Overall height Top-plate outer dimensions Hole spacing Hole width Load capacity daN Hub with ball bearing
    • 125 35 156 100x85 80x60 9 35 120 180 614903

    Additional Information

    Manufacturer Tellure Rota
    Condition New
    Warranty 1 year
    Tax Class VAT 7.5%
