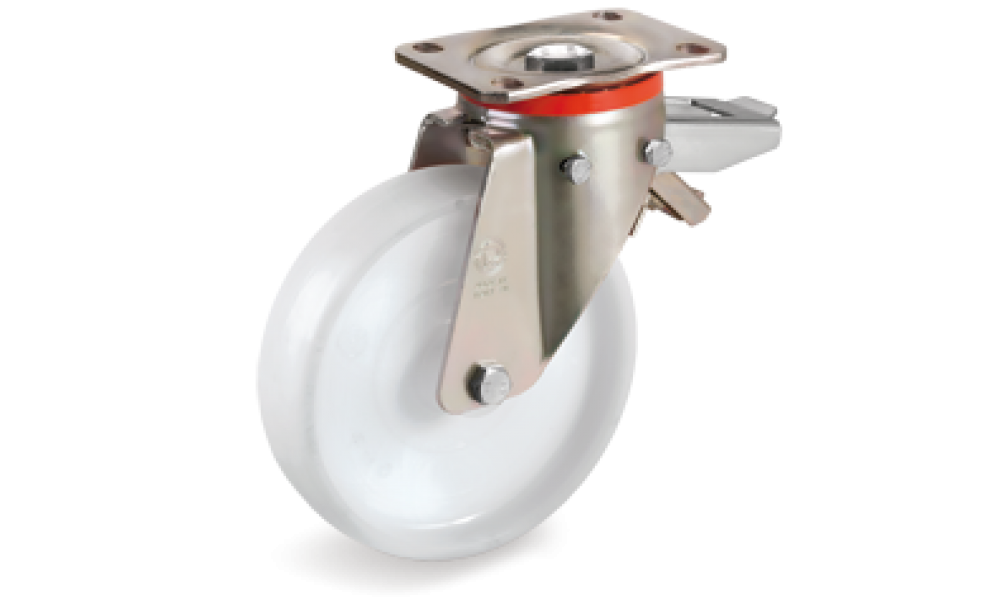

125mm TR-ROLL Polyurethane Wheels, Polyamide 6 centre, swivel top plate bracket type NLX 625123

Be the first to review this product

Quick Overview

Description:"TR-Roll" polyurethane wheels ERGO profile, nylon centre, ball bearings,


swivel top plate bracket type NLX, Diam. 125x40 mm.


Load capacity:220 daN

₦49,777.60

Availability: Ship by Manufacturer (delivery time 15 - 45 days)

X

Estimate Shipping and Tax

  • Details


    TR-ROLL polyurethane wheels, polyamid 6 centre, swivel top plate bracket type NLX

    Wheel description
    TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of polyamide 6.
    Ball bearing bore or bore without bearing
    The housing is obtained by moulding and contains ball bearings series 2Z. The hub is available also without bearings.
    Stainless steel axle
    Axle composed of stainless steel bolt according to UNI EN 24017 and stainless steel nut according to UNI EN 24032.
    Swivel top plate bracket type NLX
    Swivel top plate bracket type NLX. The plate, the ball rice ring and the fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of AISI 304 stainless steel with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted.

    Wheel diametre Wheel width Overall height Top-plate outer dimensions Hole spacing Hole width Offset Load capacity daN Weight Hub with stainless steel ball bearing
    125 40 156 100x85 80x60 9 37 220 1,10 625123

    Additional Information

    Manufacturer Tellure Rota
    Condition New
    Warranty 1 year
    Tax Class VAT 7.5%
