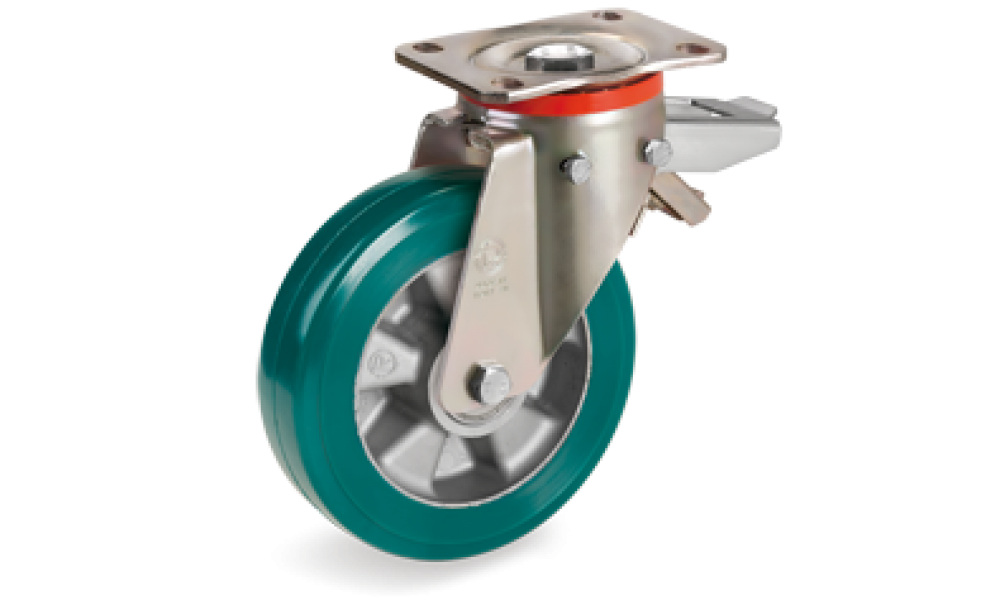

200mm TR-ROLL Polyurethane Wheels, Aluminium centre, swivel top plate bracket type P with rear brake 627206

Be the first to review this product

Quick Overview

Description :"TR-Roll" polyurethane wheels, aluminium centre,

swivel top plate bracket with brake type P (medium-heavy duty). Diam. 200x50 mm.

Load Capacity; 700 daN


Availability: Ship by Manufacturer (delivery time 15 - 45 days)


Estimate Shipping and Tax

  • Details

    TR-ROLL polyurethane wheels, hardness 75 Shore A; core made of cast aluminium.
    Ball bearing bore
    The housing is obtained by moulding and contains ball bearings series Z.
    Axle composed of ground steel bush with bolt according to UNI EN 24017 and nut according to UNI EN 24032.
    Swivel top plate bracket P with adjustable brake
    Swivel top plate bracket type P. The plate, the ball rice ring and the fork are made of pressed steel zinc plated finish; swivel actions: double ball greased race with dust protection seal made of nylon. The king pin is made of steel bolt 8.8 and nut series. The adjustable brake locks wheel and top plate rotation.

      Wheel diametre Wheel width Overall height Top-plate outer dimensions Hole spacing Hole width Offset Brake swept radius Load capacity daN Hub with ball bearing
    200 50 250 140x110 105x80 11 70 126 700 627206



    Additional Information

    Manufacturer Tellure Rota
    Condition New
    Warranty 1 year
    Tax Class VAT 7.5%
