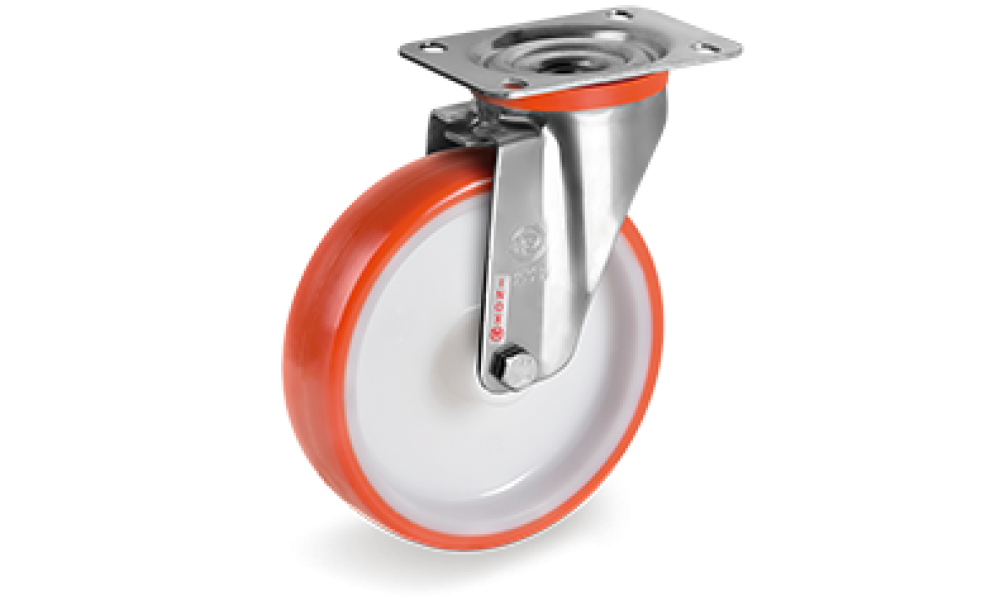

80mm Injection Polyurethane Wheels, Polyamide 6 centre, Swivel top plate bracket type NLX 604401

Be the first to review this product

Quick Overview

Description: Injection polyurethane wheels, standard swivel brackets NLX type,


hub with plain bearing. Diam. 80x30 mm.


Dynamic Load Capacity: 120 daN







₦20,792.30

Availability: Ship by Manufacturer (delivery time 15 - 45 days)

X

Estimate Shipping and Tax

  • Details

    Injection polyurethane wheels, polyamide 6 centre, swivel top plate bracket type NLX

    Wheel description
    Injection polyurethane tread; hardness 60 Shore D. Polyammide 6 centre.
    Plain bearing bore or stainless steel roller bearing bore
    The plain bearing bore results from a hole in the material forming the centre of the wheel and contains the axle.
    In the roller bearing bore, the bearing housing is obtained by moulding and contains stainless steel cylindrical roller bearings with polyam
    Stainless steel axle
    Axle composed of ground AISI 304 stainless steel bush, with stainless steel bolt according to UNI EN 24017 and stainless steel nut according to UNI EN 24032.

    Swivel top plate bracket type NLX
    Swivel top plate bracket type NLX. The plate, the ball rice ring and the fork are made of AISI 304 stainless steel; swivel actions: double ball greased race of AISI 304 stainless steel with dust protection seal made of polyethilene. The king pin is integral with top plate and duly rivetted.

    Wheel diametre Wheel width Overall height Top-plate outer dimensions Hole spacing Hole width Offset Load capacity daN Hub with plain bearing
    80 30 107 100x85 80x60 9 39 120 604401



    Additional Information

    Manufacturer Tellure Rota
    Condition New
    Warranty 1 year
    Tax Class VAT 7.5%
