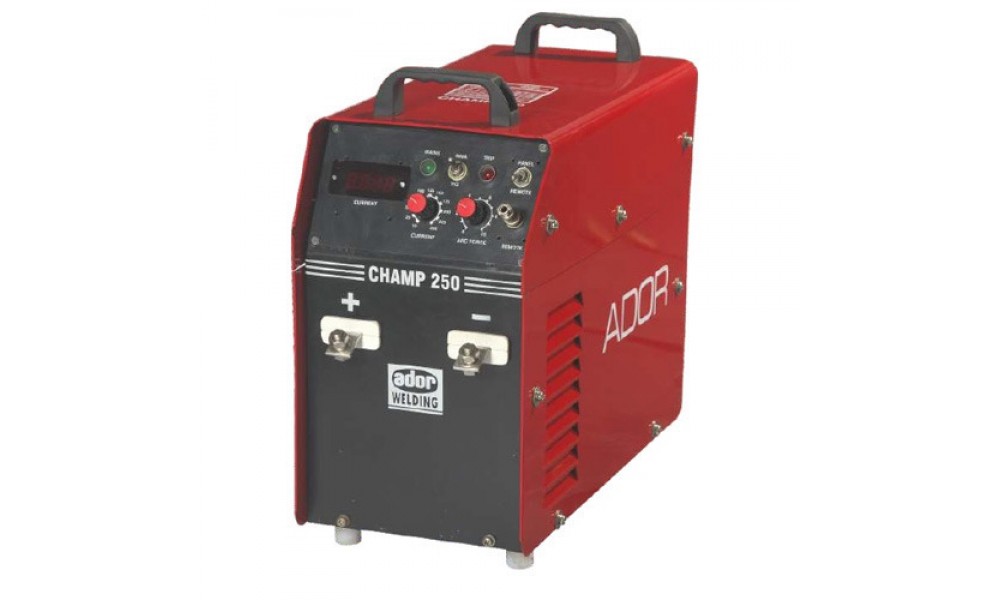

Inverter Welding Machine,Champ 250

Be the first to review this product

Quick Overview

PROTECTIONS WITH AUTO RESET



  • Input Supply Voltage protections for overand under voltage

  • Over Temperature

  • Protection against Single phasing

Availability: Out of stock

X

Estimate Shipping and Tax

  • Details

    SALIENT FEATURES

    • Latest PWM inverter technology
    • IGBT based
    • High efficiency
    • Built in Hot Start
    • Smooth and stable arc with minimum spatter
    • Arc force adjustments provided on the front panel
    • TIG operation possible with external HF TIG Control unit.
    • Suitable for Pipe welding application with Cellulose Electrode

    TECHNICAL SPECIFICATIONS UNIT CHAMP 250
    INPUT
    Voltage Volts 415 , +15%, -10%
    Phase No. 3
    Frequency Hz 50/60
    Input KVA @ 415Vac
    @ 100% duty cycle KVA 7.5
    @ No Load KVA 0.15
    Power Factor CosØ 0.94
    Efficiency % 85
    OUTPUT
    Open Circuit Voltage Volts 72
    Welding Current Range Amps 10-250
    Welding Current (40°C and 10 minute cycle)
    @ 60% duty cycle Amps 250
    @ 100% duty cycle Amps 195
    GENERAL
    Suitable for Welding Electrode Size mm ø 1.6, 2.5, 3.2, 4 and 5 mm
    Arc force setting   Adjustable by Potentiometer
    Built in Hot Start   25% more than set current for 2 second
    Current Display (Actual)   3 digit –7 segment digital panel pcb
    Ingress Protection Class IP23
    Cooling Type Forced Air
    Insulation Class H
    Dimensions
    Length mm 520
    Width mm 260
    Height (with handle) mm 450
    Height (without handle) mm 410
    Weight (approx.) Kg 26
    ORDERING INFORMATION MODEL PRODUCT CODE
    Standard Power Source – MMA outfit CHAMP 250 F10.34.501.0025
    Optional Accessories
    Welding Cable Assembly -5mtr.   S17.01.001.0002
    Earthing Cable Assembly -5mtr.   S17.01.001.0001
    Remote control unit -10 mtr.   S17.01.002.0301

    Additional Information

    Manufacturer Ador
    Condition New
    Warranty No
    Tax Class VAT 7.5%
