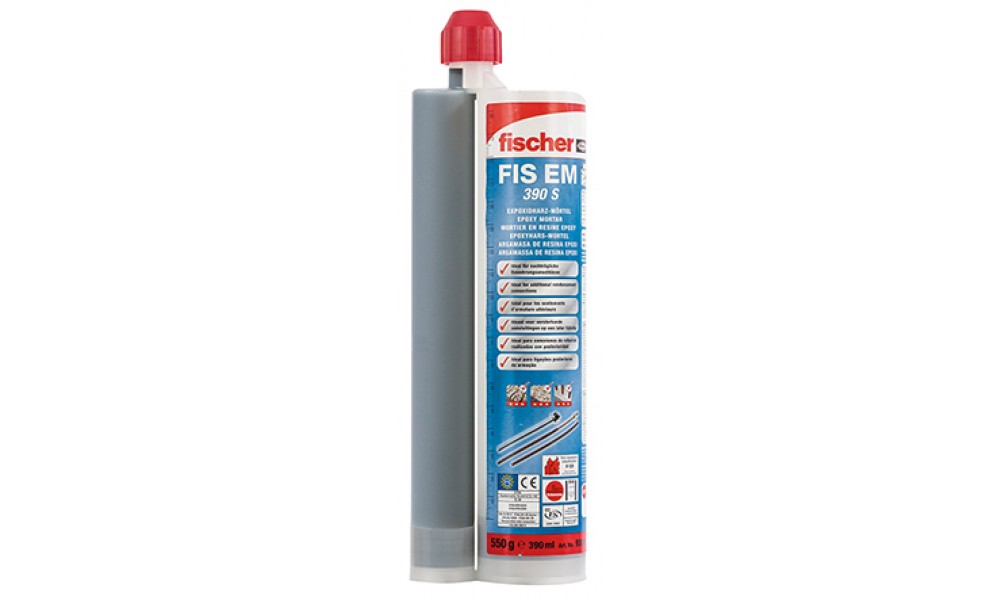

Fischer Injection mortar FIS EM 390 S

The powerful injection mortar for rebar connections and cracked concrete.

Art.-No. 93048

The fischer injection mortar FIS EM 390 S is a high-quality epoxy resin mortar for maximum load-bearing capacity in cracked and non-cracked concrete. Alongside the injection mortar, the injection system consists of reinforcement steel, the approved components anchor rod FIS A and internal threaded anchor RG M I. The anchor rod FIS A can be set with variable anchorage depths. This enables the system to be ideally adjusted to the load to be supported. This optimises the use of materials. The epoxy resin mortar is suitable for fixings in indoor and outdoor areas such as top concrete jointers, high racks, or heavy-duty steel constructions.

Advantages

High bond strengths and minor mortar shrinkage allow maximum load application in cracked and non-cracked concrete, even with large threaded rod diameters of up to M30.
Variable anchorage depths from 4x to 20x the threaded rod diameter allow for ideal adaptation to the load to be applied, and ensure an optimised installation time and use of materials.
FIS EM is also approved for diamond-drilled and water-filled drill holes, thus ensuring more flexibility on the construction site.
The Epoxy mortar FIS EM is approved for seismic applications C1, C2, which ensures safety even under extreme conditions.
