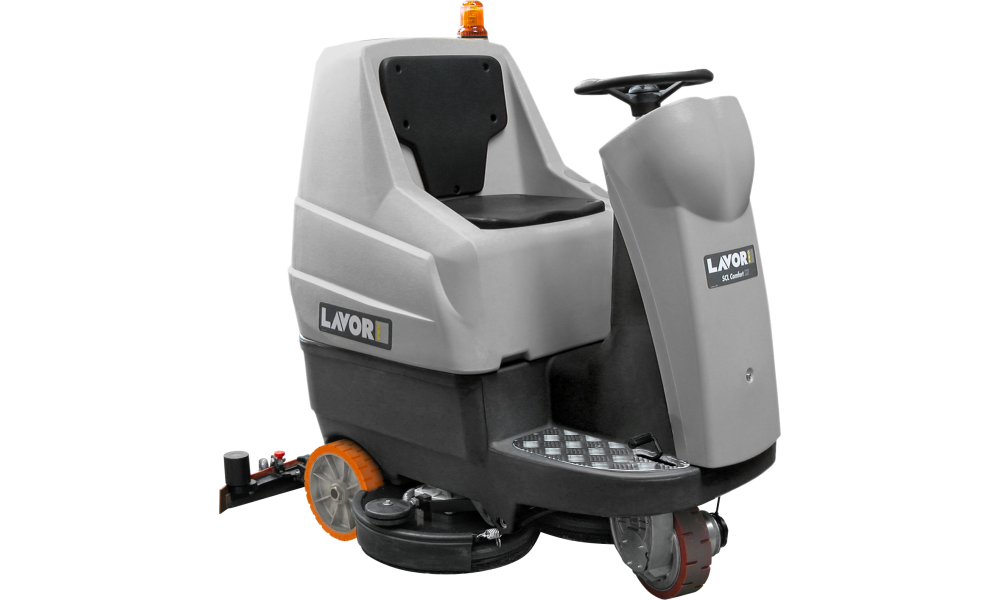

LAVORPRO COMFORT XS-R 75 UP 8.574.4101

Details

Capable to work for the maintenance and deep cleaning of large areas (up to 4,000 m²) with a considerable reduction of cleaning costs. More than 50 kg of constant pressure on the brushes.

Large load capacity tank, resulting in reduced number of stops and maximum use of battery charge for effective operation of the machine.
Compact size (810 mm).
Stability even when fully loaded, front independent wheeldrive with tight steering radius.
Recovery tank control window for easy cleaning and ordinary maintenance.
Automatic brush plate lifting system.
Automatic squeegee squeegee lifting while reverse going.
Automatic device that stops brushes and detergent water outﬂow when the machine is stationary.
Antifoam device.
Self-levelling brushes.
Integrated on-board battery charger.
The easy access to the recovery tank allows fast cleaning and saniﬁcation of the tank; the tilting tank together with a large size drain hose allow the complete emptying of the tank and the removal of any type of solid dirt.
The antifoam device protects suction motor, as well as the electronic switch ﬂoating that stops suction when the tank is full.
The machine is equipped with actuators for the automatic lifting of the plate brush and squeegee.

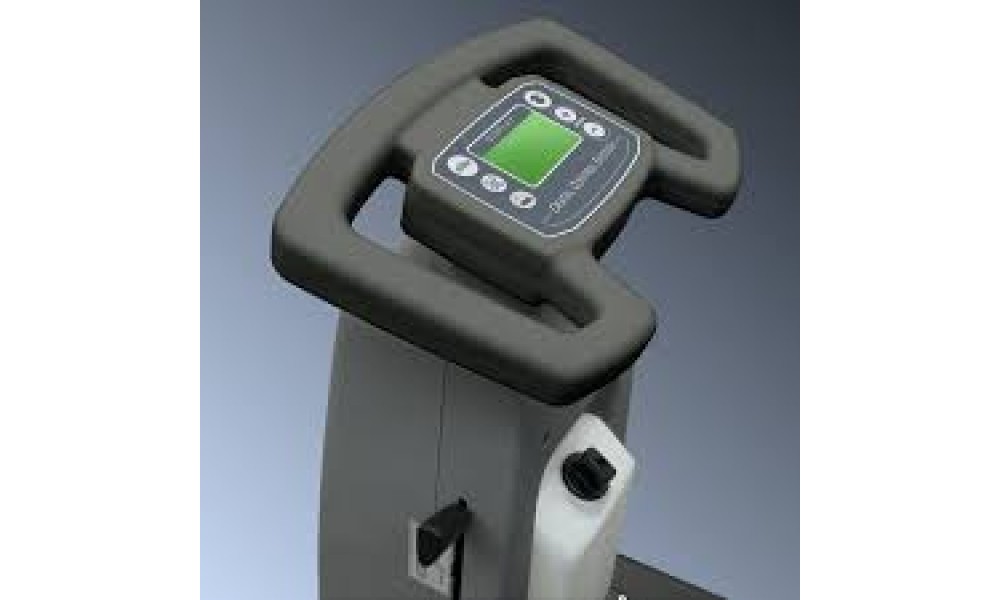

Control panel is provided with hour meter, speed adjustment knob detergent solution and low level warning light. All motors are protected by thermal breakers.
The detergent water tank serves as battery compartment, allowing the housing of great capacity batteries.
Battery charger and suction motor are placed the recovery tank; the housing of the vacuum motor allows to drastically reduce the operating noise.
The ergonomic and comfortable shape of the machine allows the operator to work effortless for a long time, improving productivity.
Thanks to the compact dimensions the machine can work with agility even in narrow spaces.

TECHNICAL CHARACTERISTICS

Scrubbing / squeegee width	750/900 mm
Detergent tank capacity	110 l
RPM / pressure on the brushes	170/50 RPM/Kg
Brush motor power	400 W
Max. working capacity	3750 m2/h
Recovery tank capacity stop/total	130/155 l
Depression / vacuum motor power	1300/400 mmH2O/W
Traction motor power	600 W
Power supply	24V
