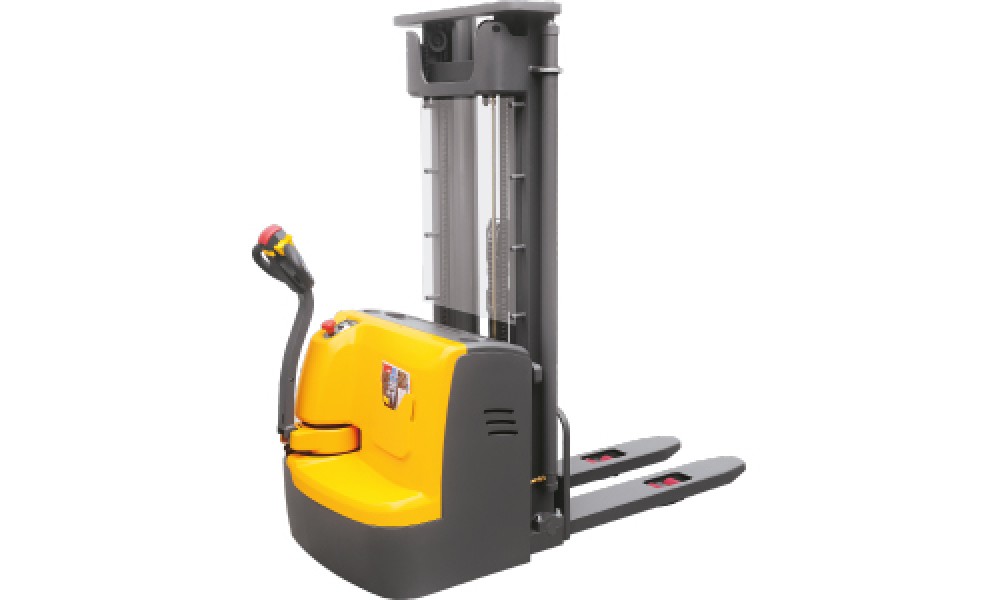

Walkie Electric Pallet Stacker 1.5tons- CDDR15-III

Details

Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.

Advantages:

STRUCTURAL AND SAFETY :

• Advanced AC control system Intelligentized regenerative brake system.

• Multi-function display with BDI and fault code etc.

• Emergency reversing device.

• Auto deceleration system utilizes regenerative braking .

• Built-in pressure relief valve protects the trucks from overloads.

• Emergency power disconnect.

• Stepless speed control.

• With lifting limit switch to shut off pump motor at the max. lifting height.

• Vertical drive motor has a small turning radius. The motor structure is water-proof and dust-proof.

SERVICEABILITY:

• CANbus technology reduces wiring complexity and increase reliability.

• Advanced AC control system with brushless motor .

• Auto deceleraion system utilises regenerative braking .

• Side-way battery with roll-out system is very convenient for replacement.

PARAMETER

Model		CDDR15-I	CDDR15-II	CDDR15-III
Load capacity	Q(kg)	1500	1500	1500
Load centre distance	c(mm)	600	600	600
Load distance, centre of drive axle to fork	x(mm)	697	697	697
Fork height,lowered	h13(mm)	90	90	90
Tyre size, front	mm	Φ250× 70	Φ250× 70	Φ250× 70
Tyre size, rear	mm	Φ80× 84	Φ80× 84	Φ80× 70
Additional wheels(dimensions)	mm	Φ150× 60	Φ150× 60	Φ150× 60
Wheels, number front rear(x=driven wheels)		1x+1/4	1x+1/4	1x+1/4
Height, mast lowered	h1(mm)	1735/1985/2135/2235/2050/2210/2410		2087/1837/2087/2237
Free lift(option 2500~3500)	h2(mm)	1300/1550/1700/1800/1570/1740/1940		~
Max.lift height	h3(mm)	2500/3000/3300/3500/4500/5000/5600		1600/2500/3000/3300
Height, mast extended	h4(mm)	2955/3455/3755/3955/5030/5510/6110		2087/3087/3587/3887
Height of tiller in drive position min./max.	h14(mm)	670/1300	670/1300	670/1300
Overall length	l1(mm)	1950	1950	2045
Length to face of forks	l2(mm)	878	878	878
Overall width	b1(mm)	820	820	820
Fork dimensions	s/e/l(mm)	60/180/1070(1150)	60/180/1070(1150)	60/170/1070(1150)
Width overall forks	b5(mm)	570/695	570/695	570/695
Aisle width for pallets 800×1200 lengthways	Ast(mm)	2420	2420	2450
Turning radius	Wa(mm)	1575	1575	1605
Travel speed, laden/unladen	Km/h	5.8/6	5.8/6	5.8/6
Lift speed,laden/unladen	m/s	0-0.12/0-0.19	0.11/0.15	0.06/0.13
Lowering speed,laden/unladen	m/s	0-0.35/0-0.12	0.12/0.12	0.13/0.10
Service brake		Electromagnetic	Electromagnetic	Electromagnetic
Battery voltage,nominal capacity K5(Duplex Mast)	V/Ah	24/300	24/240	24/200
Battery voltage,nominal capacity K5(Triplex Mast)	V/Ah	24/300	24/240	~
Battery weight	kg	260	220	160
Battery dimensions l/w/h	mm	675x254x545	625x254x500	800x254x320
Service weight(with battery)	kg	1080/1200/1220/1240/ 1405/1450/1490	1030/1150/1170/1190/ 1365/1400/1440	810/850/860
