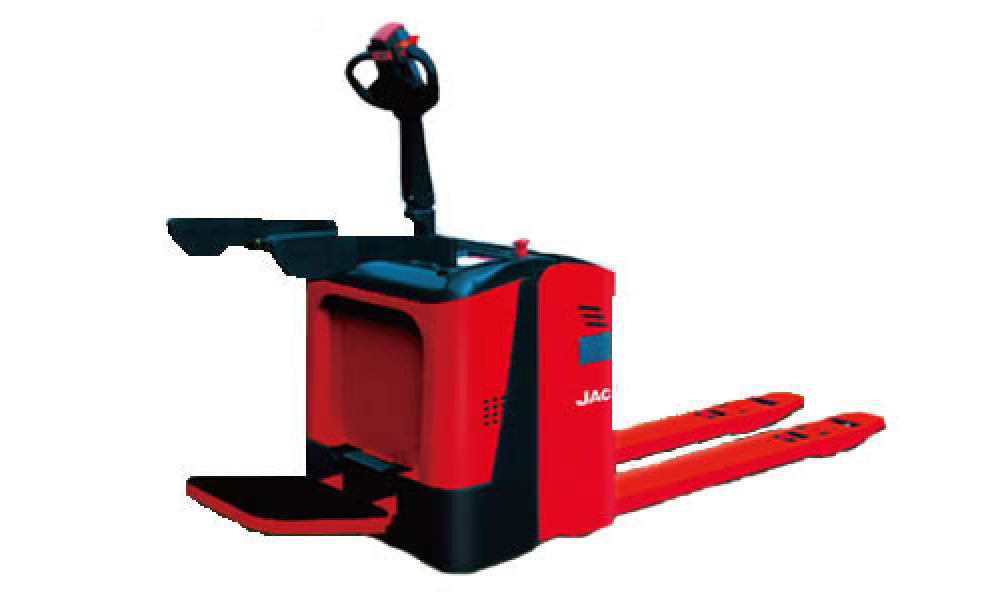

2T Electric Pallet Truck

Be the first to review this product

Quick Overview

Features






  •  The drive axle is equipped with lubricating nozzle and sleeve.

  •  Canbus technology simplifies wiring system and increases reliability of the warehouse equipment.

  •  Solid steel housing can be easily and conveniently opened for maintenance.

  •   Hall element reduces the abrasion and prolongs the service life of the component.




₦0.00

Availability: In stock

* Required Fields

X

Estimate Shipping and Tax

  • Details

    Product description







    •  The handle of the electric pallet truck is equipped with emergency switch.
    • The electricity quantity and the working hours can be displayed on the screen.
    •  An emergency power-off switch is available with this electric stacker
    •  Low-speed travel switch ensures high safety of the electric pallet.
    •  Low battery protection device for the pallet lift truck prolongs the lifespan of the battery.



    Technical Specification





    Model - CBD20R-II
    Drive mode - Electric
    Operating type - Standing
    Rated load capacity Q(kg) 2000
    Load centre distance c(mm) 600
    Front overhang x(mm) 815/865/935
    Tread y(mm) 1211/1261/1331
    Tyre - Polyurethane
    Max. lifting height h3(mm) 202
    Height of tiller at the position for driving (min./max) h14(mm) 1150/1430
    Overall length l1(mm) 1710/1760/1830
    Overall width of electric pallet truck b1(mm) 775
    Fork size s/e/l(mm) 53×180×1100(1150/1220)
    Outer width of fork b5(mm) 520/550/650/685
    Aisle width (Pallet 1000×1200 crossways) Ast(mm) 1910/1960/2030
    Aisle width (Pallet 800×1200 lengthways) Ast(mm) 2010/2010/2030
    Turning radius Wa(mm) 1550/1600/1670
    Travel speed (Full load/no load) Km/h 7/7.1
    Battery voltage/Nominal capacity K5 V/Ah 24/210
    Battery weight kg 170
    Service weight (With battery) kg 710



    Additional Information

    Manufacturer Mamtus Nigeria
    Condition New
    Warranty 1 year
    Tax Class VAT 7.5%
