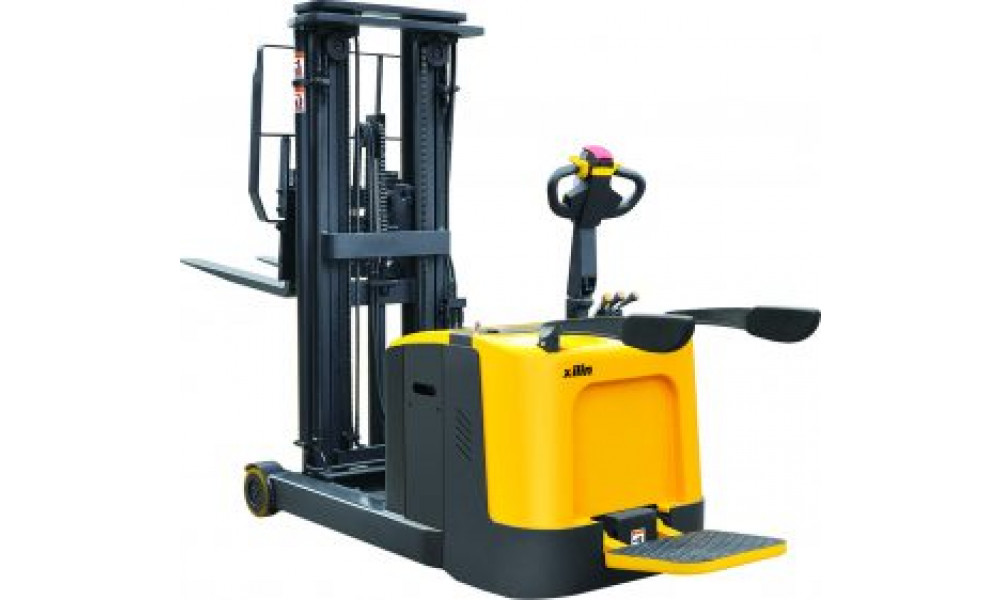

Rider Counterbalanced Battery Powered Reach Stacker - CQD12R

Be the first to review this product

Quick Overview

Easy maintenance:



  • Uses magnet suction for battery cover closing, no screw which is easy for installation and maintenance

  • AC controlling system with sensitive reaction, low noise, less maintenance and strong control ability of the speed

₦0.00

Availability: In stock Ship by Manufacturer (delivery time 15 - 45 days)

X

Estimate Shipping and Tax

  • Details

    Key Specifications/Special Features:

    STRUCTURAL



    • Two lifting cylinders placed on outer sides of the mast.
    • Germany imported special steel mast.
    • Vertical driving wheel, driving efficiency, easy installation & maintenance.
    • Compact structure and low gravity.



    SAFETY AND EFFICIENCY

    • AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
    • Tilting system forks easy for loading and stacking.
    • High Storage battery ensures strong and long-lasting power.
    • Meter with BDI, prolonging the battery’s using time.
    • The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate.
    • With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
    • The adjustable regulator valve can adjust the lowing speed of the masts.

    EASY MAINTENANCE

    • Magnet suction battery cover, easy for installation and maintenance.
    • AC controlling system, low noise, less maintenance.



    Technical Data

    Model

    CQD12R

    CQD15R

    Load capacity

    Q(kg)

    1250

    1500

    Load center

    c(mm)

    500

    500

    Load distance

    x(mm)

    430

    520

    Tyre size, front

    mm

    Φ250×70

    Φ250×70

    Tyre size, rear

    mm

    Φ210×85

    Φ210×85

    Balance wheel size

    mm

    Φ150×60

    Φ150×60

    Wheels, number front rear ( x=driven wheels)   1x+ 2/2

    1x+2/2

    Mast/ Forks obliquity front/back

    °

    3/6

    3/6

    Height, mast closed

    h1(mm)

    1820/2070/2320/1920



    /2080/2250/2420

    1880/2118/2400/1953

    /2128/2298/2495

    Free lift (option)

    h2(mm)

    0/0/0/1386/1550



    /1720/1886

    0/0/0/1280/1480

    /1600/1870

    Max. lifting height

    h3(mm)

    2500/3000/3500/4000



    /4500/5000/5500

    2500/3000/3500/4000

    /4500/5000/5600

    Height, mast extended

    h4(mm)

    3300/3800/4300/



    4800/5300/5800/6300

    3500/4000/4500/

    5000/5500/6000/6600

    Height of tiller in drive position min./ max.

    h14(mm)

    1160/1460

    1160/1460

    Overall length

    l1(mm)

    2150

    2250

    Length to face of fork

    l2(mm)

    1200

    1240

    Overall width

    b1(mm)

    990

    990

    Fork dimension

    s/e/l(mm)

    35/100/950(1070/1150)

    35/100/950(1070/1150)

    Fork carriage width

    b3(mm)

    220-680

    220-680

    Reach distance

    l3(mm)

    560

    650

    Aisle width for pallets 800×1200 length ways

    Ast(mm)

    2650

    2750

    Turning radius

    Wa(mm)

    1650

    1750

    Travel speed, laden/ unladen

    kw/h

    6.8/7

    6.8/7

    Lifting speed, laden/ unladen

    m/s

    0-0.13/0-0.16

    0-0.13/0-0.16

    Lowering speed, laden/ unladen

    m/s

    0-0.45

    0-0.45

    Battery volts./ Cap.

    v/ah

    24/270

    24/270

    Battery weight

    kg

    260-320

    260-320

    Battery dimensions (l*w*h)

    mm

    825x213x590

    825x213x590

    Service weight (with battery)

    kg

    1800

    Additional Information

    Manufacturer Mamtus Nigeria
    Condition New
    Warranty 1 year
    Tax Class VAT 7.5%
